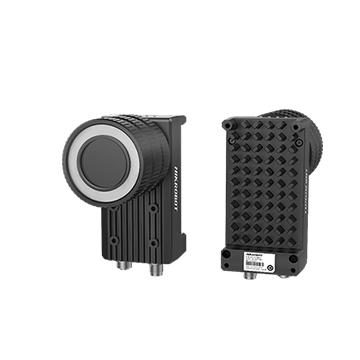

MVHID-6200M – Smart Code Reader

Giá bán: Vui Lòng Liên hệ

20MP Logisitc Code Reader.

Tư vấn bán hàng : 0904 582 579

Provides 20 MP resolution to cover a larger field of view.
Adopts deep learning algorithm with good robustness to recognize various poor printing quality codes.
Supports recognition of multiple codes in the field of view.
Supports gigabit Ethernet transmission to output images.
Supports networking of multiple devices via code reading platform.
Ingress protection (IP) 67.

Symbologies	1-dimensional codes: Code 39, Code 128, Code 93, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14 2-dimensional codes: QR Code, Data Matrix
Max. frame rate	20 fps
Max. reading speed	60 codes/sec
Sensor type	CMOS, rolling shutter
Pixel size	2.4 µm × 2.4 µm
Sensor size	1 inch
Resolution	5440 × 3648
Exposure time	16 μs to 0.5 sec
Gain	0 dB to 40 dB
Mono/color	Mono
Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP
Data interface	GigE
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Power supply	12 VDC to 24 VDC
Max. power consumption	12 W@24 VDC
Lens mount	C-mount
Light source	Not included
Lens cap	Included
Dimension	126 mm × 66 mm × 113.2 mm
Weight	Approx. 750 g (1.7 lb.)
Ingress protection	IP67 ( under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 95% RH, non-condensing
Client software	IDMVS
Certification	CE, RoHS
